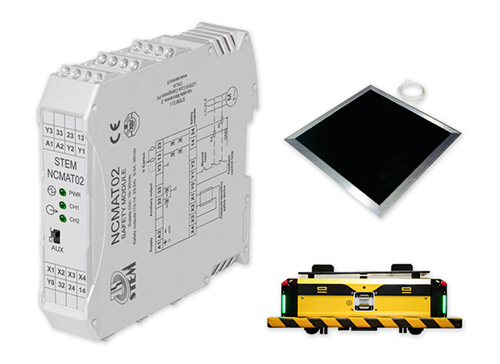

Safety module NCMAT02

Functional description

The NCMAT02 safety module is used to control pressure-sensitive mats, safety edges, and bumpers. The device can be powered by 12Vdc or 24Vdc and is equipped with transistor safety outputs that make it particularly immune to vibration issues.

Application fields

  • Monitoring of hazardous areas using safety mats
  • Monitoring of bumper on AGVs (automatic guided vehicles), SGVs (self-guided vehicles) or LGVs (laser-guided vehicles)
  • Monitoring of bumpers and edges  on agricultural and earthmoving machinery
  • Stop button handling

Main features

  • Safety category up to 3, PL e according to EN 13849-1
  • 2-24Vdc power supply
  • Protected against “load dump” phenomena
  • Inputs for mats, edges, and bumpers with 2 or 4 wires
  • 2 transistors safety outputs (I max 0.5A)
  • Instantaneous or delayed transistor changeover output (configurable)
  • Automatic or monitored start
  • Certified in accordance with standards EN 13849-1, EN ISO 13856-1, EN ISO 13856-2, and EN ISO 13856-3
