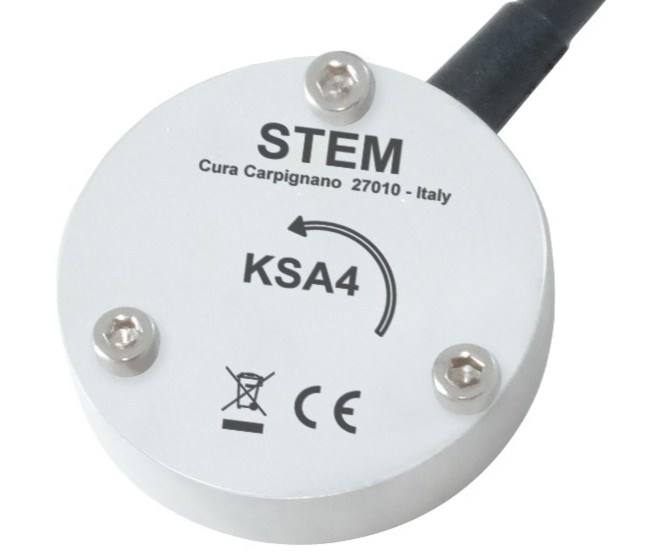

Angular Sensor KSA4

Functional description

  • Low-cost sensor for detecting the absolute angular position of a rotating permanent magnet.
  • Reliable measurement even with a large distance between sensor and magnet.

Application fields

  • Angular limit switches
  • Angular position feedback for motor control
  • Angular position measurement
  • Valve opening and closing position detection

Main features

  • Power supply: 9–30 VDC
  • Resolution: up to 12 bit
  • Sensor–magnet distance: up to 10 mm
  • Measurement outputs: ABZ, 4–20 mA, 0–10 V
